Description

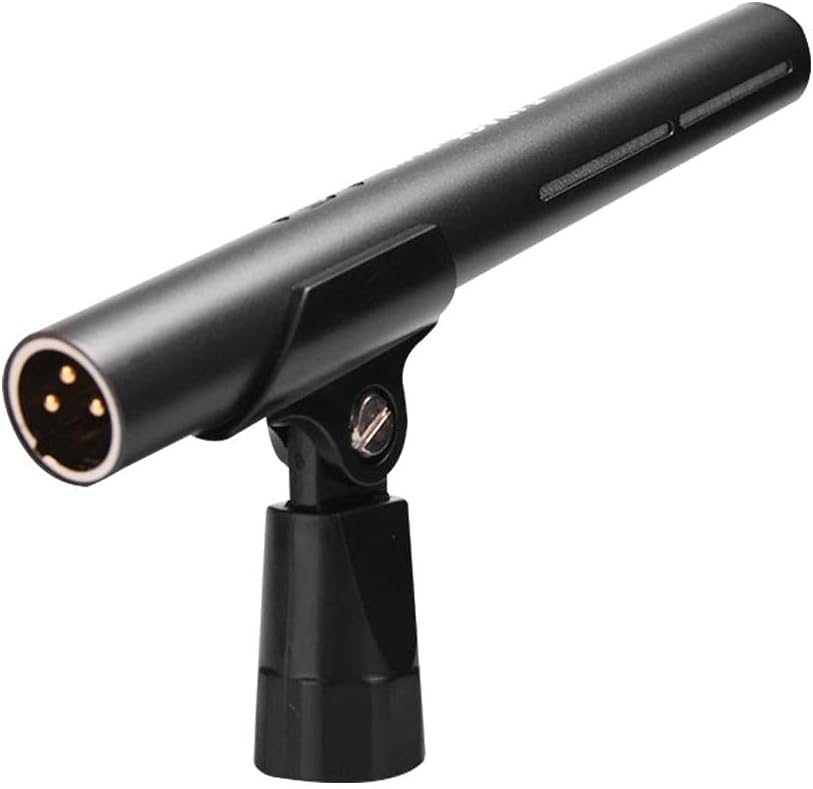

Designed for film, radio, and television, the PM-510 Super-Cardioid Shotgun Microphone from E-image is a short shotgun interference microphone optimized for outdoor recording. It offers excellent directional control in a compact design with a balanced range of frequency response. The PM-510 Super-Cardioid Shotgun Microphone features a super-cardioid polar pattern, a low-noise floor, and an all-metal body.
The PM-510 Super-Cardioid Shotgun Microphone from E-image is a lightweight directional shotgun microphone. It can be used to capture audio in various environments for speech and audio applications such as feature film, broadcast TV, or sound for video productions.
Featuring a frequency response of 40Hz to 16kHz, a super-cardioid pickup pattern, and low noise, the PM-510 shotgun microphone delivers transparent audio reproduction. Also, a built-in 180Hz hi-pass filter switch minimizes low-frequency noise and ambiance.
The microphone is built in a rugged housing made of a lightweight aluminum alloy. In addition, it includes a stand clamp for a 5/8 -27 threaded microphone stand, a 5/8 -27 to 3/8 -16 threaded adapter, a foam windscreen.
Audio Output: XLRM XLR Plug
Bass: 180Hz 12dB
Dimensions: 21×182mm
Element: Back Electret Condenser
Fixture Weight: 105g
Frequency Response: 40Hz-16kHz
Impedance: Output: 500 20% at 1kHz
Max. Range: Max Input SPL: 130dB T.H.D 1% at 1kHz
Open Circuit Sensitivity: -35dB 3dB 1dB=1V/Pa at 1kHz
Phantom Power Requirements: Phantom: 48V DC 2mA
Polar Pattern: Super-cardioid
Signal-To-Noise-Ratio: 70dB 1KHz at 1Pa
Switch: Smooth High-Pass Filtering
What’s in the box
- 1 x PM-510 Shotgun microphone
- 1 x 5/8″-3/8″ base connector
- 1 x Windshield cover
- 1 x Safety box
